Cov khoom

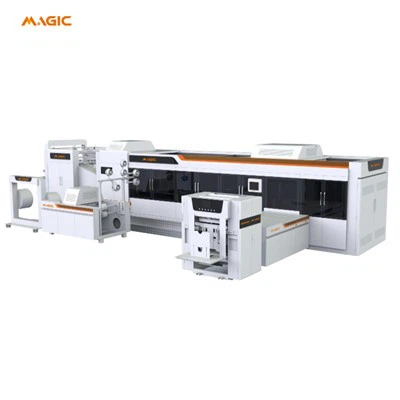

Tsis Siv Neeg Ntawv Hnab Tshuab
Tsis siv neeg lub hnab ntim tshuab tag nrho yog tsim los tsim cov hnab ntawv nrog twisted leeg. Nws yog qhov tsim nyog rau kev tsim cov hnab ntim khoom loj hauv kev lag luam xws li zaub mov thiab khaub ncaws.
Muaj nuj nqi
Tsis Siv Neeg Ntawv Hnab Tshuab
Lub tshuab ntim ntawv tsis siv neeg puv tshuab yog tsim los tsim cov hnab ntawv nrog twisted tes, zoo tagnrho rau ntau lawm hauv kev lag luam xws li zaub mov thiab khaub ncaws. Cov txheej txheem suav nrog kev tsim cov hlua khi los ntawm cov ntawv yob thiab cov hlua khi, xa cov tes mus rau qhov chaw pasting, ua ntej txiav daim ntawv ntawm txoj hlua txoj haujlwm, thov cov kua nplaum rau qhov chaw, pasting handles, thiab ua tiav cov ntawv ntim khoom.
Cov qauv
Cov yam ntxwv tseem ceeb
- Lub tshuab tau nruab nrog Fabkis SCHNEIDER kov npo tib neeg-lub computer interface, ua kom yooj yim ntawm kev khiav lag luam thiab kev tswj xyuas.
- Lub tshuab txais thawj LENZE PC tswj los ntawm lub teb chaws Yelemees, kev koom ua ke nrog fiber ntau kho qhov muag kom ruaj khov ua haujlwm ceev.
- Lub tshuab txais thawj LENZE servo motors los ntawm lub teb chaws Yelemees thiab thawj SICK photoelectric qhov muag kho, kom ntseeg tau qhov tseeb taug qab thiab luam ntawv lub hnab sib dhos.
- Cov khoom siv raw khoom thauj khoom siv hydraulic pib-lifting qauv. Lub unwind unit nta tsis siv neeg nro tswj.
- Cov khoom siv raw unwinding EPC txais yuav Ltalis SELECTRA, txo lub sijhawm xav tau rau cov khoom sib dhos.
Technical parameter
|
Qauv |
MG --RZ450AT |
|
Txiav ntev |
300-630 hli |
|
300-530mm (daim ntawv nrog kov) |
|
|
Lub hnab dav |
220-450 hli |
|
240-450mm (daim ntawv nrog kov) |
|
|
Hauv qab dav |
100-220 hli |
|
Ntawv Thickness |
80-150g/㎡ (daim ntawv nrog kov) |
|
Daim ntawv yob dav |
670-1370 hli |
|
750-1370mm (daim ntawv nrog kov) |
|
|
Yob ntawv txoj kab uas hla |
φ1500 hli |
|
Daim ntawv core |
f76mm ua |
|
Patch ntev |
190 hli |
|
thaj dav |
40-50 hli |
|
Kov ntev |
340 hli |
|
Kov nrug |
95mm ua |
|
Txoj kab uas hla |
ф{0}} hli |
|
Patch ntawv yob dav |
90-100 hli |
|
daim ntawv yob txoj kab uas hla |
φ1200 hli |
|
daim ntawv thickness |
100-135g/㎡ |
|
Tshuab ceev |
30-180bags/min |
|
Hauv qab folding hom |
|
|
Txiav riam |
Sawtooth txiav |
|
Fais fab mov |
380V 3 theem 42KW |
|
Tshuab hnyav |
22T |
|
Tshuab loj |
16500x6000x3200mm |
Ntim thiab Shipping
Ntoo lub thawv ntim kom paub meej tias lub tshuab huv si thiab zoo li qub thaum thauj
Kev pab cuam tom qab muag
Cov kev pab cuam tom qab muag ntawm peb lub tshuab laminating tsis siv neeg yog qhov zoo tshaj plaws:
- Peb muab kev txhawb nqa dav dav thiab kev pab daws teeb meem, suav nrog kev saib xyuas lub sijhawm tiag tiag ntawm cov tshuab, kom ntseeg tau tias lawv ua haujlwm zoo.
- Rau kev teeb tsa, kev ua haujlwm, thiab kev saib xyuas, peb muab cov lus qhia video thiab kev txhawb nqa online los ntawm peb pab neeg ua haujlwm.
- Yog tias cov neeg siv khoom xav tau, peb muab kev pabcuam kev cob qhia rau ntawm qhov chaw.
